Product Details
＋

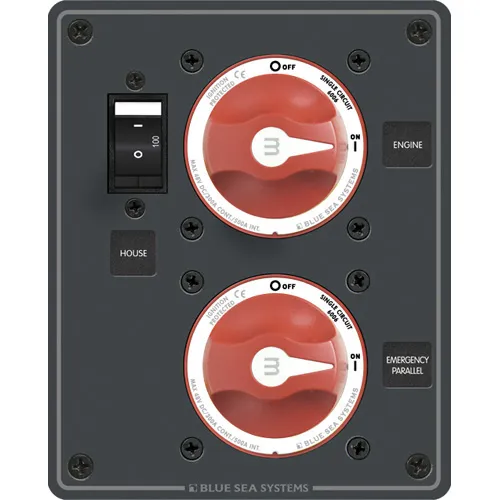

- Includes [2] m-Series, ON-OFF Battery Switches PN 6006
- Isolates Engine circuit from House circuit
- Allows independent battery control
- Allows emergency cross connect between isolated battery banks
- The addition an Automatic Charging Relay (ACR) automates charging two battery banks
- Protects electronics from sags and spikes caused by engine cranking
- Ignition protected - Safe for installation aboard gasoline-powered boats
Specifications:
Maximum Voltage: 32V DC
Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Cranking Rating: 10 sec 1500A
Cranking Rating: 1 min 775A
Height: 6.50in (165.1 mm)
Width: 5.25in (133.35 mm)
Depth: 3.00in (76.2 mm)
Weight: 2.20lb (1 kg)
